FL Indicator Pin Monitor

The FL PDI Indicator Pin Monitor utilizes high-quality sensors with built-in LEDs. The sensor reads the movement of the FL PDI indicator pin, ensuring that the lubricant has reached the FL PDI. It will allow the user to monitor FL PDI/pin operation remotely from any PLC.

Description
Specification

Product Description

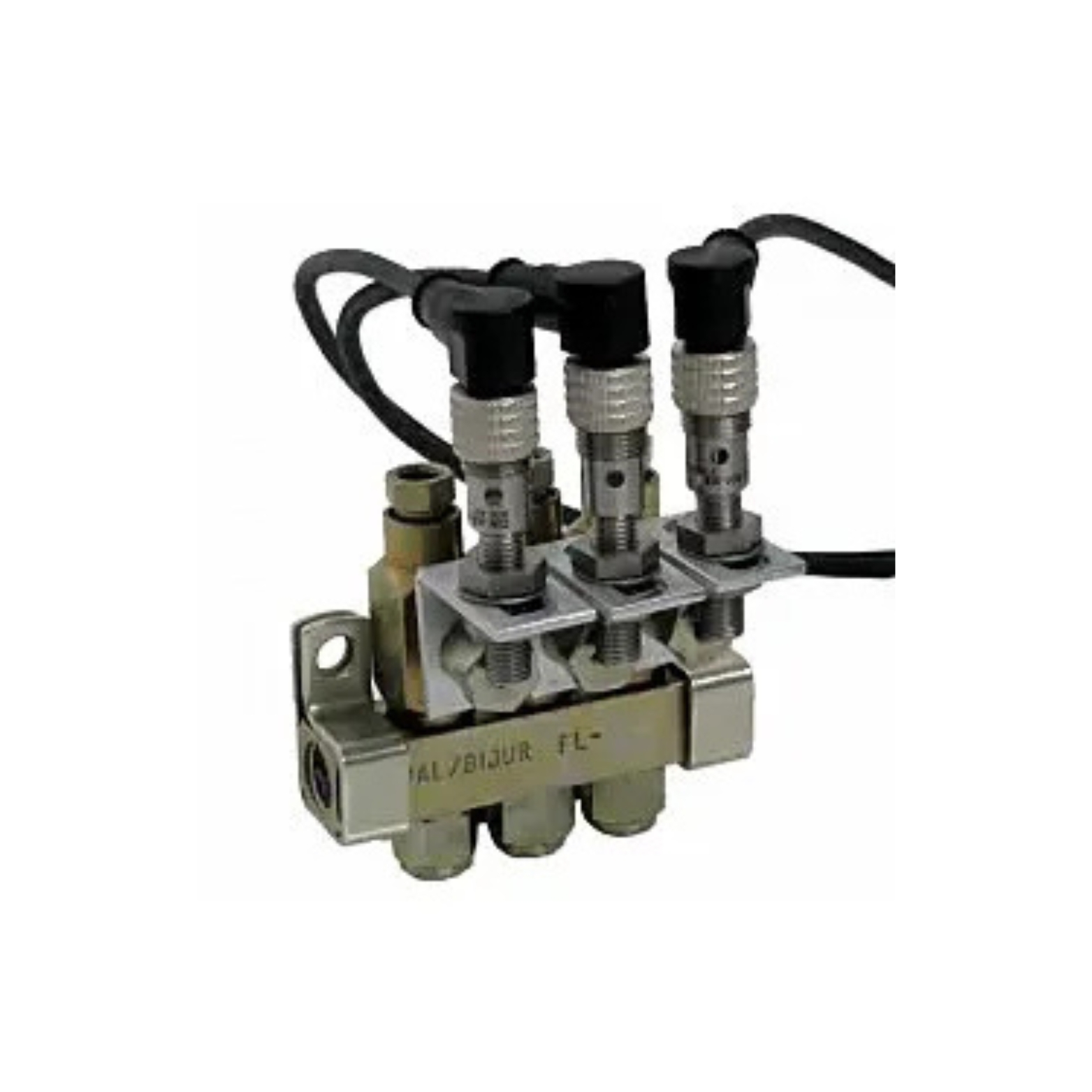

Bijur Delimon FL Indicator Pin Monitor
The FL PDI Indicator Pin Monitor is available for any FL Series Injectors (FL30/40/1/11).

Disclaimer: Product images are for representation purposes only. The actual part/product could differ based on individual requirements. Please contact us for more information.

Technical Data

Sensor-Rated Operating Distance	1.6 mm
Polarity	Reversal Protection
Built-in Supply Voltage	10-36 VDC
Power On Reset	Built-in
Output Current	100 mA
IP Rating	IP-67/IP-68
LED	Built-in
Material	Stainless steel V2A (housing)
Temperature	13°F to 158°F (-25°C to 70°C)
Connection	M12 connector
Output / Polarity N.O.	NPN N.O. / PNP
