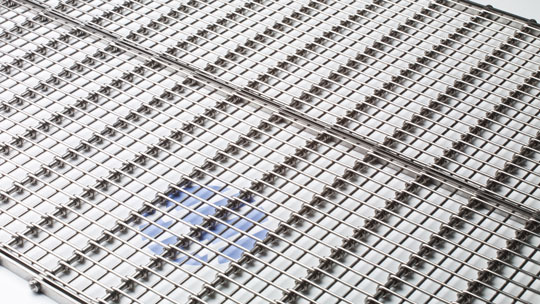

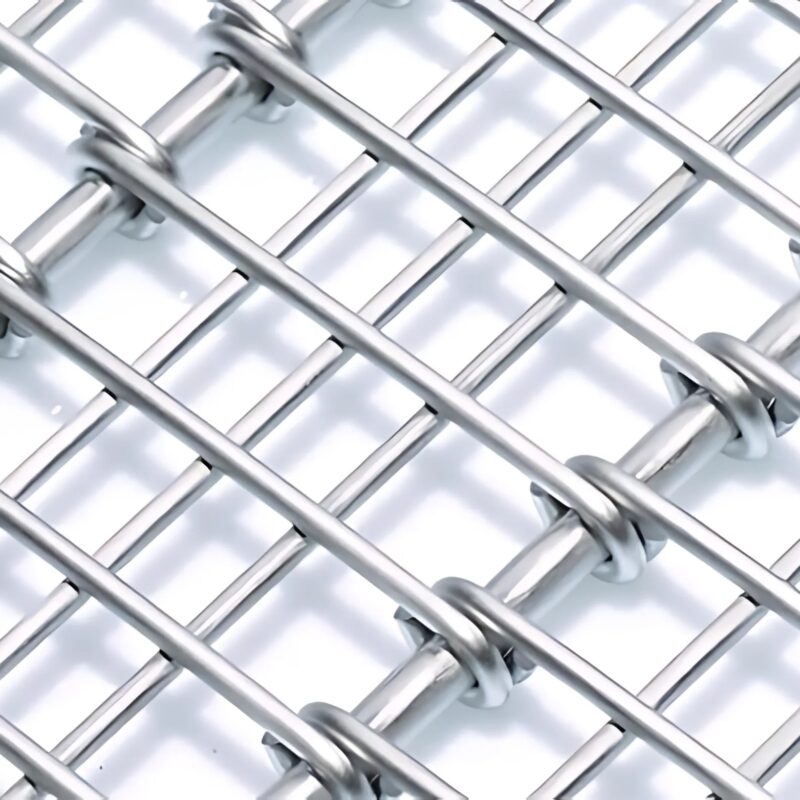

Eye-Flex Heavy-duty modular conveyor belt

Product Category - ,

Product Description

Eye-Flex? steel conveyor belts are specifically designed for applications that require a highly durable and long-lasting belt. Due to their robust construction, higher carrying capacity, and open, flat shape, these belts are the best choice for heavy-duty conveying. Whether you are replacing an existing belt or installing one for a new application, Eye-Flex? offers nearly endless configuration options tailored to meet your specific needs.

Applications

  • Transport
  • Cooking
  • Heating
  • Drying
  • Cooling
  • Drainage
  • Freezing
  • Frying
  • Baking
  • Washing
  • Weed Clearing
  • Curing
  • Sorting
  • Dredging
  • Elevating
  • De-Elevating
  • Loading
  • Degreasing
  • Grading

Advantages
Eye-Flex? has nearly endless configuration choices and is tailored to your specific needs. Eye-Flex? provides flights and side guards to accommodate any product handling requirements. Additionally, Eye-Flex? comes with various drive choices, including cage rollers, positive drive sprockets, and an optional chain edge drive for improved tracking and durability.

There are the following advantages of using the Eye-Flex? conveyor belt :

  1. Flat carrying surface
  2. Easy to clean due to open construction
  3. Positive drive
  4. High load capacity
  5. Modular design
  6. Almost unlimited application possibilities

Eye-Flex’s high strength, robustness, and open, flat carrying surface make it the ideal solution for heavy-duty conveyor belts.

Many features of the Eye-Flex? belt, such as gap width and fixing mechanism, can be customized for each application.

  • Normal gap
  • Ring
  • Spring
  • Distance sleeves
  • Underwelded wire

Optional Features

  • Side chains, hollow pins or loose link chain
  • Side guards
  • Cross flights



Additional Information

Brand

Wire Belt

Eye-Flex® Belt without spacers:
Eye-Flex® features a standard design based on a straight modular form. It is designed and constructed without spacers or perpendicularly welded under wires, providing good flow-through in applications without cross-support. Eye-Flex® is widely utilized in food processing due to its flat conveying surface, open mesh structure, and ease of cleaning. Eye-Flex® without spacers can also be repaired quickly and affordably.

Belt Pitch Eye-Flex Wire Diameter Cross Rod Diameter Minimum Gap Spacing
in mm in mm in mm in mm
0.63 15.875 0.07 1.8 0.13 3.2 0.07 1.8
0.98 25 0.08 2 0.2 5 0.08 2
1 25.4 0.08 2 0.2 5 0.08 2
1.18 30 0.06 1.6 0.16 4 0.06 1.6
1.18 30 0.08 2 0.16 4 0.08 2
1.18 30 0.08 2 0.2 5 0.08 2
1.18 30 0.08 2 0.28 7 0.08 2
1.18 30 0.08 2 0.31 8 0.08 2
1.25 31.75 0.08 2 0.2 5 0.08 2
1.97 50 0.06 1.4 0.2 5 0.06 1.4
1.97 50 0.06 1.6 0.2 5 0.06 1.6
1.97 50 0.08 2 0.2 5 0.08 2
1.97 50 0.1 2.5 0.2 5 0.1 2.5
1.97 50 0.1 2.5 0.24 6 0.1 2.5
1.97 50 0.12 3 0.31 8 0.12 3
2 50.8 0.06 1.6 0.2 5 0.06 1.6
2 50.8 0.06 1.6 0.31 8 0.06 1.6
2 50.8 0.08 2 0.24 6 0.08 2
2 50.8 0.08 2 0.31 8 0.08 2
2 50.8 0.1 2.5 0.24 6 0.1 2.5
2 50.8 0.1 2.5 0.31 8 0.1 2.5
2 50.8 0.12 3 0.31 8 0.12 3
2 50.8 0.16 4 0.31 8 0.16 4
2.36 60 0.08 2 0.2 5 0.08 2
2.36 60 0.1 2.5 0.2 5 0.1 2.5
2.76 70 0.16 4 0.28 7 0.16 4
2.95 75 0.1 2.5 0.2 5 0.1 2.5
2.95 75 0.1 2.5 0.31 8 0.1 2.5
3.94 100 0.12 3 0.31 8 0.12 3
Note: Gap spacing can be increased in 0.02” (0.50 mm) increments.

Eye-Flex® Belt with underwelded wire spacing:
Eye-Flex® belting with under welded wire spacing should be used in applications where hygiene and sanitation are crucial. The under welded wire avoids potential bacteria traps behind the spacers, springs, rings, and sleeves. This design makes cleaning and sanitation simpler and more efficient.

Belt Pitch Eye-Flex Wire Diameter Cross Rod Diameter Minimum Gap Spacing Max. Number Welded Wires
in mm in mm in mm in mm
0.63 15.875 0.07 1.8 0.13 3.2 0.08 2 1
0.98 25 0.08 2 0.2 5 0.09 2.3 1
1 25.4 0.08 2 0.2 5 0.09 2.3 1
1.18 30 0.08 2 0.16 4 0.09 2.3 2
1.18 30 0.08 2 0.2 5 0.09 2.3 1
1.97 50 0.08 2 0.2 5 0.09 2.3 3
1.97 50 0.1 2.5 0.2 5 0.11 2.8 3
1.97 50 0.1 2.5 0.24 6 0.11 2.8 3
2 50.8 0.1 2.5 0.31 8 0.11 2.8 3
2 50.8 0.12 3 0.31 8 0.13 3.3 3
2.95 75 0.1 2.5 0.2 5 0.11 2.8 3
2.95 75 0.1 2.5 0.31 8 0.11 2.8 3
Note: Gap spacing can be increased in 0.02″ (0.50 mm) increments.

Eye-Flex® Belt with rings as spacers:
This adaptable Eye-Flex® variation increases the belt space by adding rings between the wires. Increase the belt gap to allow more air to circulate around the bottom of the goods. Increasing product exposure to this additional airflow enhances your process efficiency.

Belt Pitch Eye-Flex Wire Diameter Cross Rod Diameter Minimum Gap Spacing Gap Spacing can be increased by increments of
in mm in mm in mm in mm in mm
0.98 25 0.08 2 0.2 5 0.16 4 0.08 2
1 25.4 0.08 2 0.2 5 0.16 4 0.08 2
1.18 30 0.08 2 0.16 4 0.16 4 0.08 2
1.18 30 0.08 2 0.2 5 0.16 4 0.08 2
1.25 31.75 0.08 2 0.2 5 0.16 4 0.08 2
1.97 50 0.08 2 0.2 5 0.16 4 0.08 2
1.97 50 0.1 2.5 0.2 5 0.2 5 0.1 2.5
1.97 50 0.1 2.5 0.24 6 0.2 5 0.1 2.5
2 50.8 0.1 2.5 0.24 6 0.2 5 0.1 2.5
2 50.8 0.1 2.5 0.31 8 0.2 5 0.1 2.5
2 50.8 0.16 4 0.31 8 0.31 8 0.16 4
2.36 60 0.08 2 0.2 5 0.16 4 0.08 2
2.36 60 0.1 2.5 0.2 5 0.2 5 0.1 2.5
2.95 75 0.1 2.5 0.2 5 0.2 5 0.1 2.5
2.95 75 0.1 2.5 0.31 8 0.2 5 0.1 2.5

Eye-Flex® Belt with springs as spacers:
Springs contribute to a more dimensionally stable belt in heating or freezing applications. These belts are more dimensionally stable because the wires can move along the cross rod. Springs also expose a considerable section of the connecting rod, allowing easier cleaning and sanitizing.

Belt Pitch Eye-Flex Wire Diameter Cross Rod Diameter Minimum Gap Spacing Gap Spacing also available in these widths
in mm in mm in mm in mm in mm
0.98 25 0.08 2 0.2 5 0.28 7 .31, .39, .47, .59, .69, .79 8.00, 10.00, 12.00, 15.00, 17.50, 20.00
1 25.4 0.08 2 0.2 5 0.28 7 .31, .39, .47, .59, .69, .79 8.00, 10.00, 12.00, 15.00, 17.50, 20.00
1.18 30 0.08 2 0.16 4 0.28 7 .31, .39, .47, .79 8.00, 10.00, 12.00, 20.00
1.18 30 0.08 2 0.2 5 0.28 7 .31, .39, .47, .59, .69, .79 8.00, 10.00, 12.00, 15.00, 17.50, 20.00
1.25 31.75 0.08 2 0.2 5 0.28 7 .31, .39, .47, .59, .69, .79 8.00, 10.00, 12.00, 15.00, 17.50, 20.00
1.97 50 0.08 2 0.2 5 0.28 7 .31, .39, .47, .59, .69, .79 8.00, 10.00, 12.00, 15.00, 17.50, 20.00
1.97 50 0.1 2.5 0.2 5 0.3 7.5 .33, .39, .47, .59, .69, .79 8.50, 10.00, 12.00, 15.00, 17.50, 20.00
1.97 50 0.1 2.5 0.24 6 0.3 7.5 0.79 20
1.97 50 0.12 3 0.31 8 0.41 10.5 .41, .59, .79 10.50, 15.00, 20.00
2 50.8 0.08 2 0.24 6 0.28 7
2 50.8 0.08 2 0.31 8 0.31 8
2 50.8 0.1 2.5 0.24 6 0.3 7.5 0.79 20
2 50.8 0.1 2.5 0.31 8 0.39 10 .39, .59, .79 10.00, 15.00, 20.00
2 50.8 0.12 3 0.31 8 0.41 10.5 .41, .59, .79 10.50, 15.00, 20.00
2 50.8 0.16 4 0.31 8 0.47 12
2.36 60 0.08 2 0.2 5 0.28 7 .31, .39, .47, .59, .69, .79 8.00, 10.00, 12.00, 15.00, 17.50, 20.00
2.36 60 0.1 2.5 0.2 5 0.3 7.5 .33, .39, .47, .59, .69, .79 8.50, 10.00, 12.00, 15.00, 17.50, 20.00
2.76 70 0.16 4 0.28 7 0.47 12
2.95 75 0.1 2.5 0.2 5 0.3 7.5 .33, .39, .47, .59, .69, .79 8.50, 10.00, 12.00, 15.00, 17.50, 20.00
2.95 75 0.1 2.5 0.31 8 0.39 10 .39, .59, .79 10.00, 15.00, 20.00
3.94 100 0.12 3 0.31 8 0.41 10.5 .41, .59, .79 10.50, 15.00, 20.00

Sprocket Pitch Diameter Table:

Number of Teeth Belt Pitch
inches mm inches mm inches mm inches mm inches mm inches mm inches mm inches mm inches mm inches mm inches mm
0.63 15.875 0.98 25 1 25.4 1.18 30 1.25 31.75 1.97 50 2 50.8 2.36 60 2.76 70 2.95 75 3.94 100
7 1.44 36.6 2.27 57.6 2.3 58.5 2.72 69.1 2.88 73.2 4.54 115.2 4.61 117.1 5.44 138.3 6.35 161.3 6.81 172.9 9.07 230.5
10 2.02 51.4 3.19 80.9 3.24 82.2 3.82 97.1 4.05 102.8 6.37 161.8 6.47 164.4 7.65 194.2 8.92 226.5 9.56 242.7 12.74 323.6
12 2.41 61.3 3.8 96.6 3.86 98.1 4.56 115.9 4.83 122.7 7.61 193.2 7.73 196.3 9.13 231.8 10.65 270.5 11.41 289.8 15.21 386.4
14 2.81 71.3 4.43 112.4 4.5 114.2 5.31 134.8 5.62 142.7 8.85 224.7 8.99 228.3 10.61 269.6 12.39 314.6 13.27 337.1 17.69 449.4
15 3.01 76.4 4.73 120.2 4.81 122.2 5.68 144.3 6 152.4 9.47 240.5 9.62 244.3 11.36 288.6 13.26 336.7 14.2 360.7 18.94 481
16 3.2 81.4 5.05 128.2 5.13 130.2 6.06 153.8 6.41 162.7 10.09 256.3 10.25 260.4 12.11 307.6 14.13 358.8 15.13 384.4 20.18 512.6
18 3.6 91.4 5.67 144 5.76 146.3 6.8 172.8 7.2 182.8 11.33 287.9 11.52 292.6 13.6 345.5 15.87 403.1 17 431.9 22.67 575.9
20 4 101.5 6.29 159.8 6.39 162.4 7.55 191.8 7.99 203 12.58 319.6 12.78 324.7 15.1 383.6 17.62 447.5 18.87 479.4 25.17 639.3
