Engine lubrication system – Most likely, you are already aware that engine oil is necessary for your vehicle to run correctly. You might also be aware that your engine oil needs to be changed periodically, when to check it, and how to top it off. However, what is the precise mechanism of the engine lubricating system? You\’re undoubtedly wondering the same thing if you\’ve found yourself here.
We\’ll examine in greater detail how the engine lubrication system functions in a normal car in this post, along with the several elements that influence it.
![\"engine](\"http://dev.eximeng.com/wp-content/uploads/2025/04/engine-lubrication-system-work-2.png\")

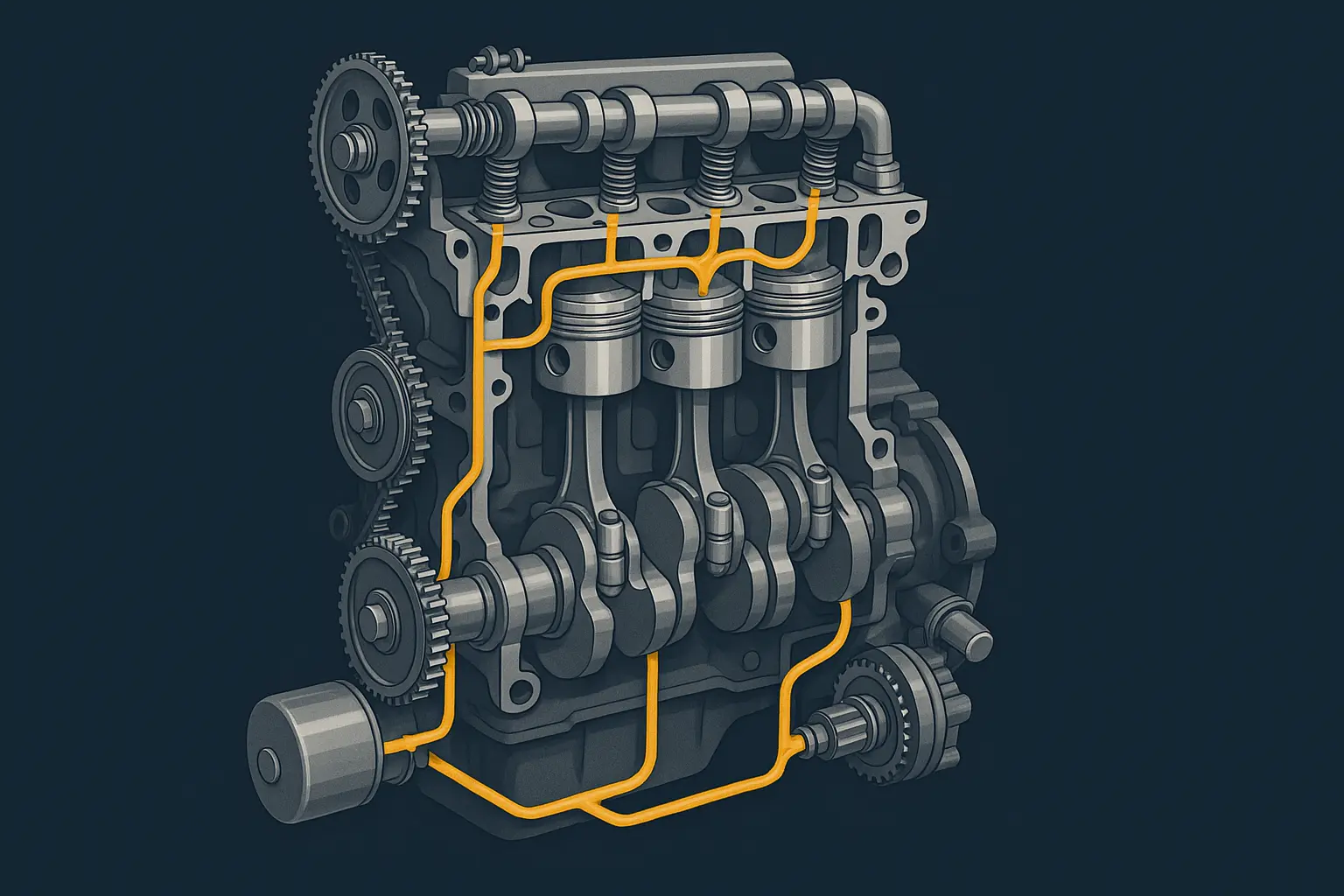

What is a car engine lubrication system?
In short, it\’s the mechanism that makes sure oil gets to all of the engine\’s lubricating points. Engine oil circulates between moving parts at lubrication sites, which lowers friction and cools essential sections.
Although there are some significant distinctions, lubrication systems are used by both electric motors and conventional internal combustion engines.
Most significantly, compared to a gasoline or diesel engine, an electric motor has a lot fewer moving parts and may even have a sealed lubrication system. This indicates that the manufacturer applies lubricant, which should last the vehicle\’s lifespan.
The parts of an engine lubrication system in a conventional gasoline or diesel vehicle are mentioned in the following material.
Key components in the lubrication system of an engine
Oil sump
An oil sump, sometimes referred to as the oil pan, is a reservoir used to store lubricant while the engine is not operating. The oil sump, which is situated at the engine\’s bottom, also helps to dissipate heat. Oil returns to the sump, where heat can be discharged into the surrounding air, after passing through the engine and absorbing heat.
Generally constructed of steel or aluminum, an oil sump can carry four to six liters of oil, depending on your car\’s capacity.
Oil filter
As the name suggests, the filter removes any impurities or debris that the oil may have accumulated over its passage through the system.
Full-flow or primary filters and by-pass or secondary filters are the two principal varieties. The full-flow filter ensures adequate lubrication even in colder temperatures by filtering oil without stopping the flow. It may have a cartridge or spin-on design.
By capturing any contaminants that the full flow filter might have overlooked, the by-pass filter provides additional protection and extends the life of your engine oil. A secondary filter can either employ a magnet to capture metallic debris or centrifugal force to capture impurities.
Oil pump
The pump circulates the oil throughout the engine once it has been filtered out of the reservoir. Once more, two different kinds of mechanisms are employed here. A rotor pump employs a set of rotating rotors to create an oil flow, whereas a gear pump uses two meshed gears. The engine powers both of them.
Oil galleries
In an engine lubrication system, oil galleries are the passageways that supply oil to vital parts including the pistons, camshafts, and crankshaft bearings. Usually composed of metal, these channels are incorporated throughout the cylinder head and engine block.
Important Lubrication Points to remember
Bearings
The crankshaft, camshaft, and other rotating components are supported by bearings. There are connecting rod bearings and main bearings in the crankshaft. Oil from the galleries is splattered onto the bearings by the rotating crankshaft, eliminating metal-to-metal contact and lowering friction and wear.
Similar to this, the camshaft has journal and occasionally thrust bearings to enable control over axial movement and smooth rotation. To lubricate every bearing at once, oil is injected into the camshaft from the galleries.
Piston rings and cylinder walls
Steel rings are used to seal the space between the piston and the cylinder walls as it rises and falls to enable your motor to run. To lessen friction between the two, oil is dispersed here from the connecting rod holes.
Valvetrain components
An engine\’s intake and exhaust valves are managed by the valvetrain. Here, motion is transferred to the pushrods by cam lobes pressing on lifters. To help the valves open and close, the rockers subsequently transmit motion from the pushrods to the valves.
In order to lubricate the lifters, which subsequently pump the remaining oil up beyond the pushrods to lubricate the rocker arm, oil may be pumped up under pressure.
On the other hand, if your car has an overhead cam, oil will travel via the galleries to the cam and then spill onto lubricating spots between the valve stems and the cam.
Types of engine lubricants
The lubrication system for an automobile\’s engine is intricate and depends on several parts to function properly. The oil itself is one of the most important elements.
You must refer to your car\’s handbook to determine which of the several varieties of engine oil is best for your vehicle.
Some have a synthetic oil base, while others are mineral-based. Synthetic oil is increasingly being utilized in current cars because of its ability to improve performance, while mineral-based oil is typically found in older engines and needs to be changed more frequently.
Engine lubrication system maintenance
Keeping up with routine oil changes and filter replacements is the best method to keep your engine lubricated system in good condition. Generally speaking, this should be done once a year or every 3,000 to 6,000 miles, whichever comes first. Additionally, you should check your oil every few weeks and add more as needed.
Metal-on-metal friction occurs inside your engine when all of the aforementioned parts are not properly lubricated due to a shortage of oil. This could result in major, irreparable harm or even engine failure and overheating.
Common lubrication system problems
Low oil pressure, an engine oil leak, lubricant contamination, or a filthy oil filter are the main causes of many common issues with the engine lubrication system. With the above-mentioned preventative maintenance, they can frequently be avoided.
A professional technician should always be consulted for diagnosis and repair if you believe your engine lubrication system has a more serious problem, like an oil pump failure.
One efficient method of extending the life of some of the most important parts of your engine is to keep your engine lubrication system in good condition. The ideal method to help your lubrication system in its vital function is to simply check your engine oil every few weeks and replace it at the specified intervals.
