ZEG Injectors

Product Description

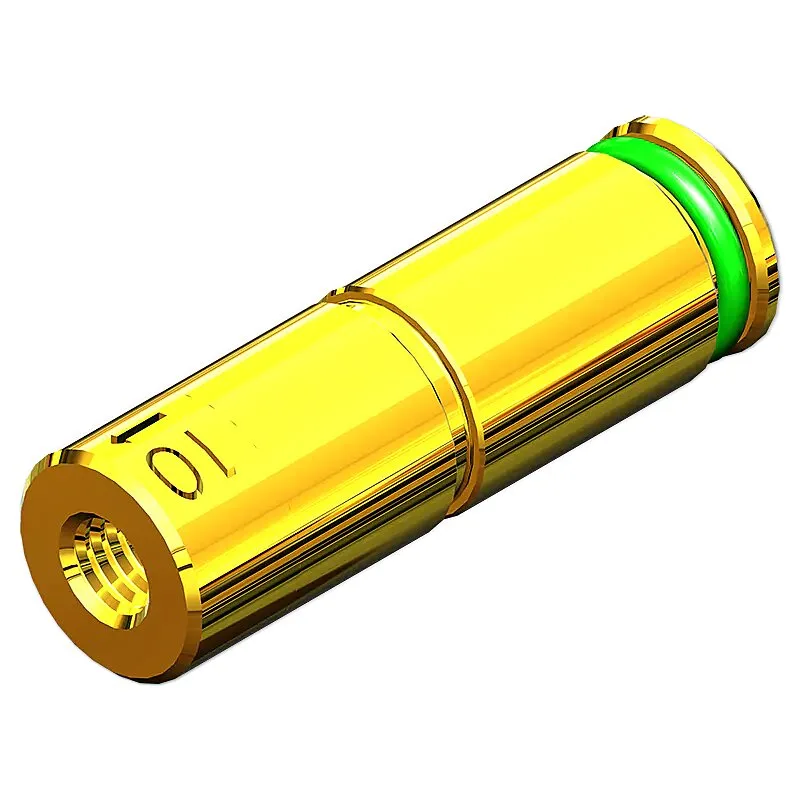

ZEG Injector

Junction Mounting, Positive Displacement Injector, Oil
PDI ZEG-20 INJECTOR JCT MOUNT 0.20CC (200mm3)

System distribution connections utilizing Bijur Delimon standard junctions and 4mm (5/32?) secondary tubing can be used with these units.ZEG Injectors can only be used in cyclic oil operation and feed in one direction. These injectors can be mounted in any direction.

ZEG Injectors can only be used in cyclic operation oil systems and feed in one direction. They can be mounted in any direction.

System Requirements: The lubricating pump in a PDI oil system must build up line pressure to 145 psi (10 bar) at minimum to actuate injector discharge; the maximum operating pressure is 435 psi (30 bar). A pressure relief device must be used in the system to permit pressure to drop quickly to approximately 36 psi (2.5 bar) between lubrication cycles, allowing injectors to reset and fully prepare for the next lubrication cycle.
