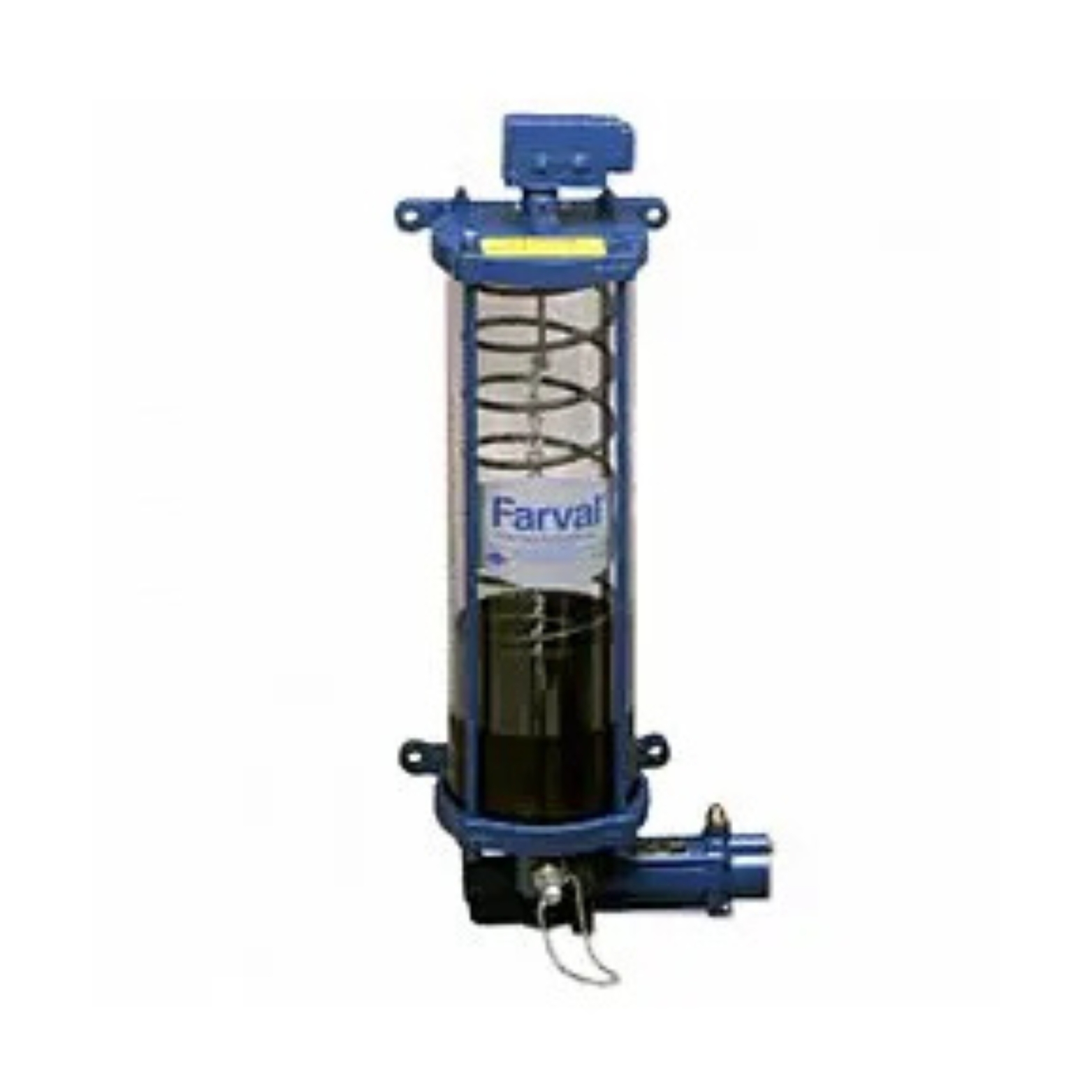

TS30 Pumping Stations Farval
T30 and T32 Reservoirs
Typical oil and grease reservoirs are shown below, and their characteristics are tabulated in the table. The low-level switch is a single pole double throw with a UL rating below.
| Body Material | Reference Letter |
Lubricant | Capacity | Lubricant Level Indication | Part Number |
| Steel | B | Grease | 5 pounds | Level Switch, Stem | T30S5AC |
| Plastic | F | Grease | 5 pounds | Level Switch, Transparent | T30P5AC |
| G | Oil | 2.5 quarts | Transparent | T30P4BC | |
| R | Grease | 10 pounds | Level Switch, Transparent | T32P5AC | |
| S | Oil | 6 quarts | Transparent | T32P4BC |
Application:
These stations lubricate machines having pneumatic or hydraulic power. All models use TP pumps and supply grease or oil.
These reservoirs are used with the pumps. Lubricating typical machine tools requires 200 hours of system operation before refilling.
| Model | Description |
| T30 and T32 | 10 amps at 125/250, or 3 amps at 480 volts A.C. |
| 0.5 amps at 125 volts D.C. | |
| 0.25 amps at 250 volts D.C. |
