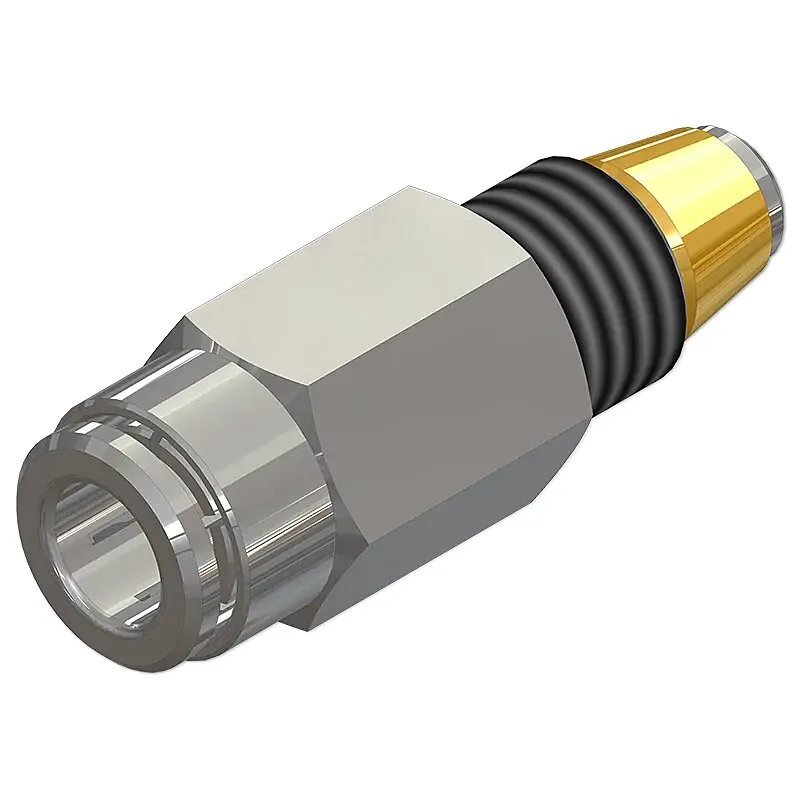

AR5195 PVB OUTLET FTG HP QC 1 1 1 jpg

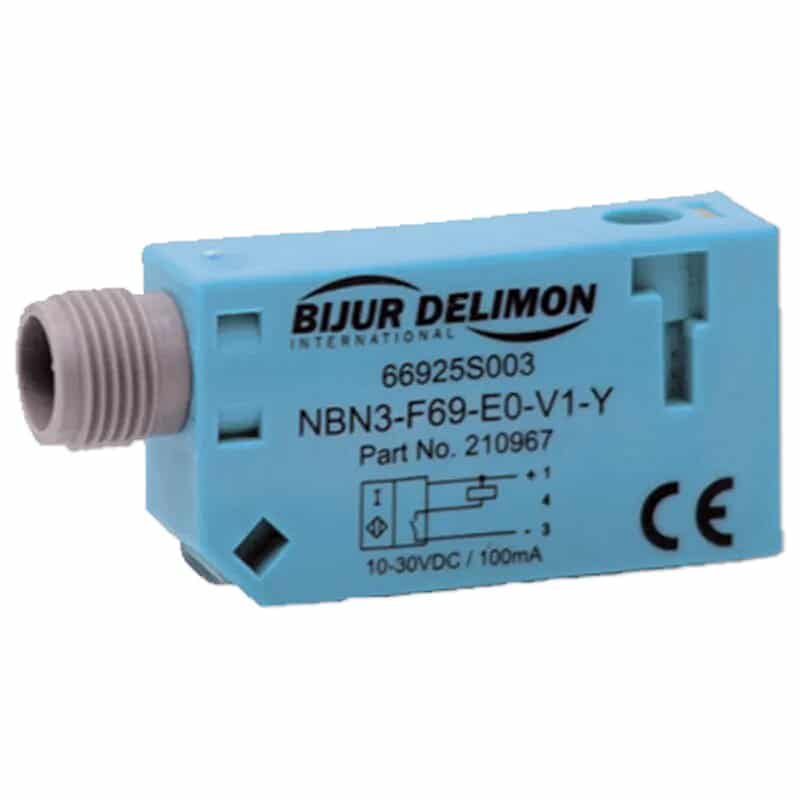

66925S003 Cycle Switch 1 1 1 1

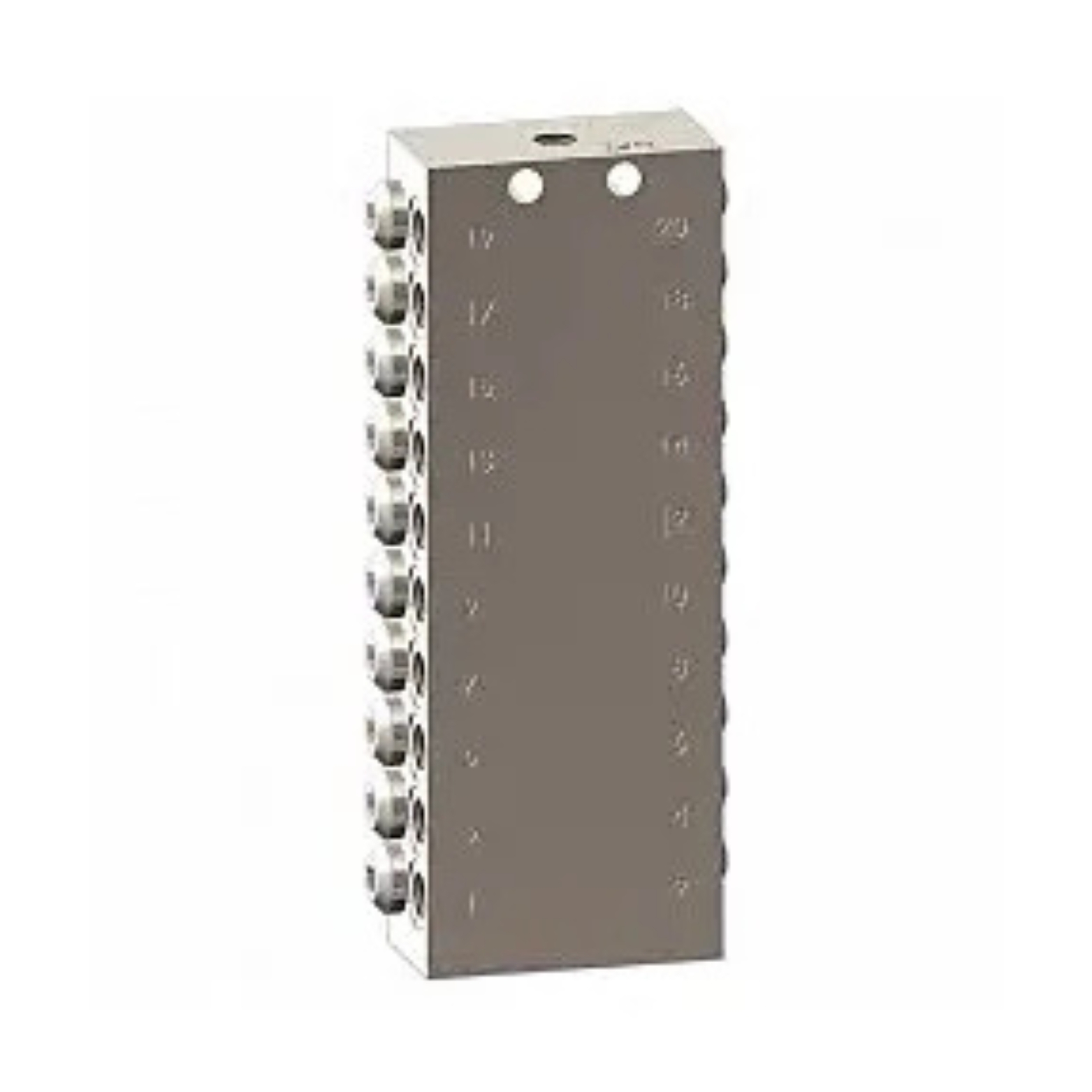

PVBM Mobile Divider Valves

PVB Mobile Divider Valves accurately meter and dispense lubricant to as many as 20 outlet lines at operating pressures up to 3600 psi (248 bar). Output volumes are fixed at 0.17cc (0.01 cu. in.) per cycle but can be combined with other outlets using appropriate fittings for larger outputs.

Add to Cart

Product Description

PVBM Mobile Divider Valves

Farval PVB Mobile Divider Valves are available with cycle indicator pins to confirm system operation visually. The cycle pin can also be fitted with a switch to provide electrical feedback to a system controller.

Operation:
The operational sequence of a PVB Divider Valve is defined as “progressive,” meaning that each valve segment completes its piston stroke, discharging a positive volume of lubricant to the point it serves before the following valve segment operates. As long as the lubricant is supplied under pressure to the inlet of the divider valve, these segments will continue to operate progressively. The divider valves will always follow a constant discharge pattern. When lubricant flow ceases, the pistons will stop. Whenever flow resumes, the pistons will start again at the same point in the discharge cycle.

Features:

  • Flexible design allows for on-site configurations.
  • Valves are available in sizes ranging from 6 to 20 outlets.
  • Positive displacement discharge.
  • One switch monitors the complete system.
  • Valves are corrosion-resistant.

Disclaimer: Product images are for representation purposes only. The actual part/product could differ based on individual requirements. Please contact us for more information.

Additional Information

Brand

Farval
Lubricant Grease NLGI grade 000-2
Oil ISO VG 68 to 1500 at working temp
Synthetics Contact factory prior to use
Discharge/Cycle/Outlet 0.17cc(0,01cu.in)
Minimum Pressure  145 psi (10 bar)
Maximum Pressure
Without indicator pin 4350 psi (300 bar)
With indicator pin 2300 psi (160 bar)
Maximum Differential Pressure (between two opposite outlets)  1015 psi (70 bar)
Operating Temperature Range -13ËšF to 176ËšF (-25ËšC to 80ËšC)
Material Carbon steel with surface protection
Surface Protection  Proprietary, 1000-hour salt spray
