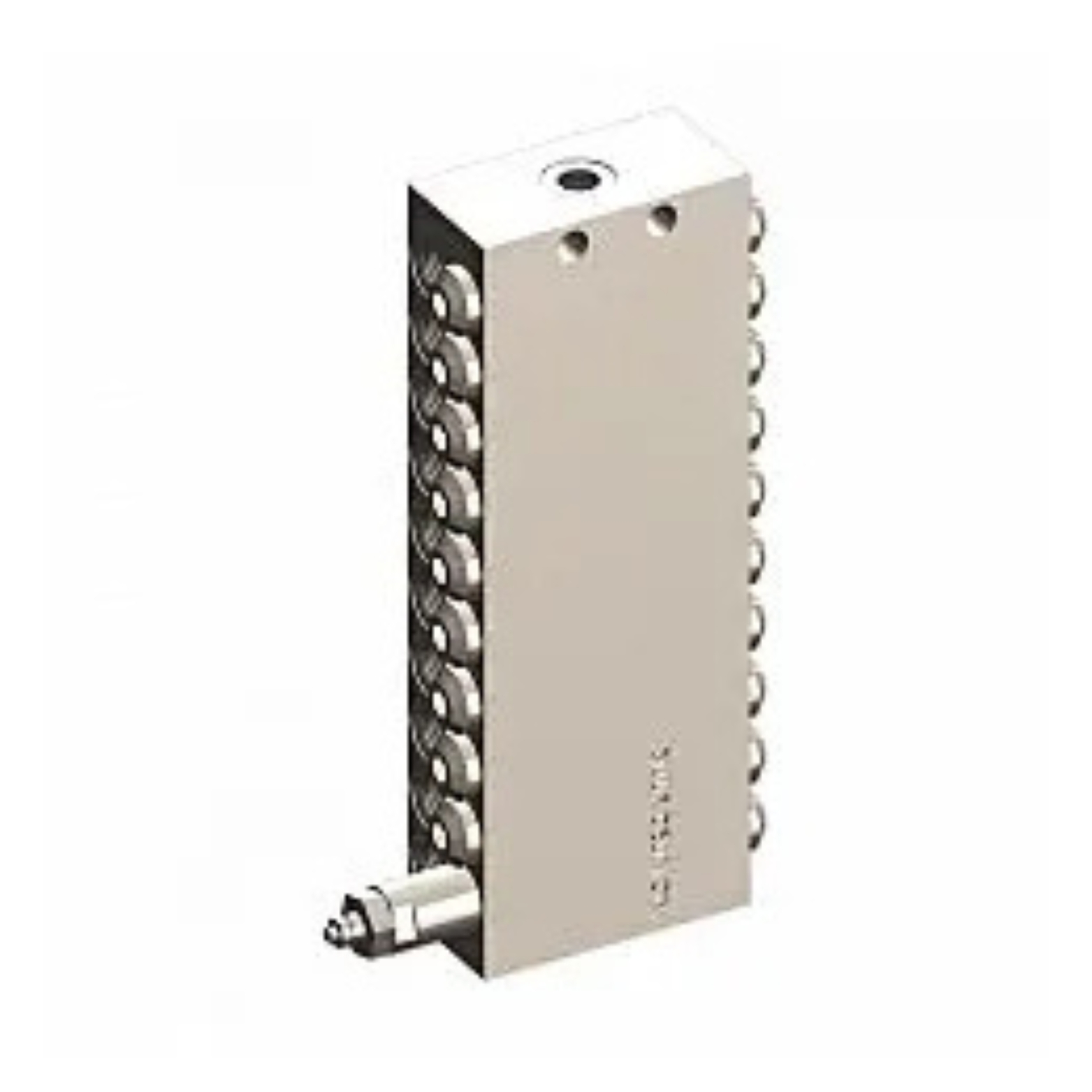

PVB Divider Valves

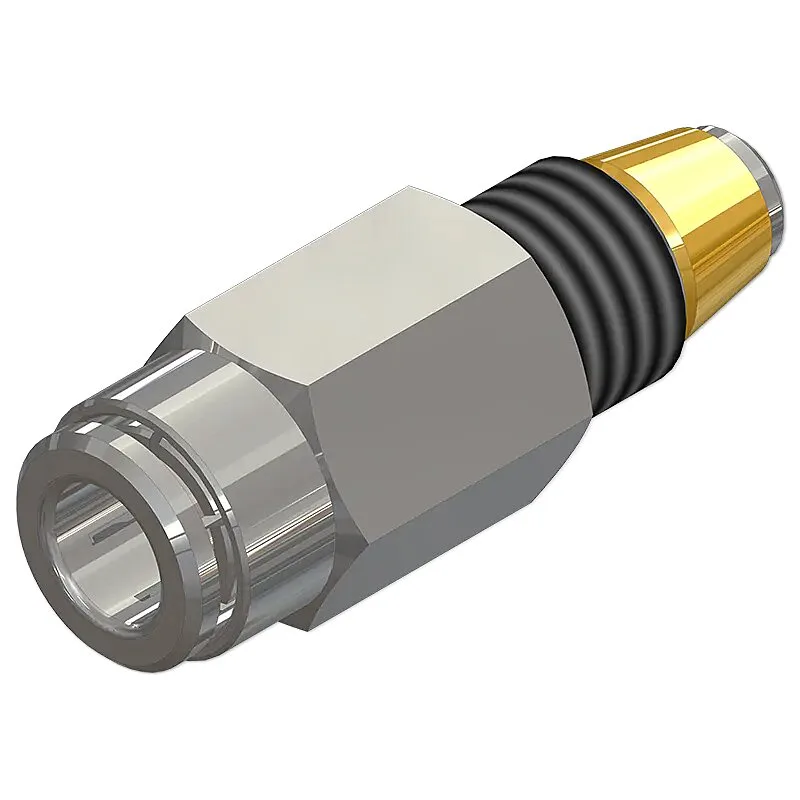

PVB Divider Valves accurately meter and dispense lubricant to as many as 20 outlet lines at operating pressures up to 3600 psi (248 bar). Output volumes are fixed at 0.17cc (0.01 cu. in.) per cycle but can be combined with other outlets using appropriate fittings for larger outputs.

Product Description

PVB DIVIDER VALVES
General:

The PVB Divider Valve is designed for small-size progressive lubrication systems. It is a cost-efficient solution for supplying multiple lubrication points with relatively small volumes of oil and grease. It is used with machine tools, processing machinery, presses, textile, printing, and packaging machinery.

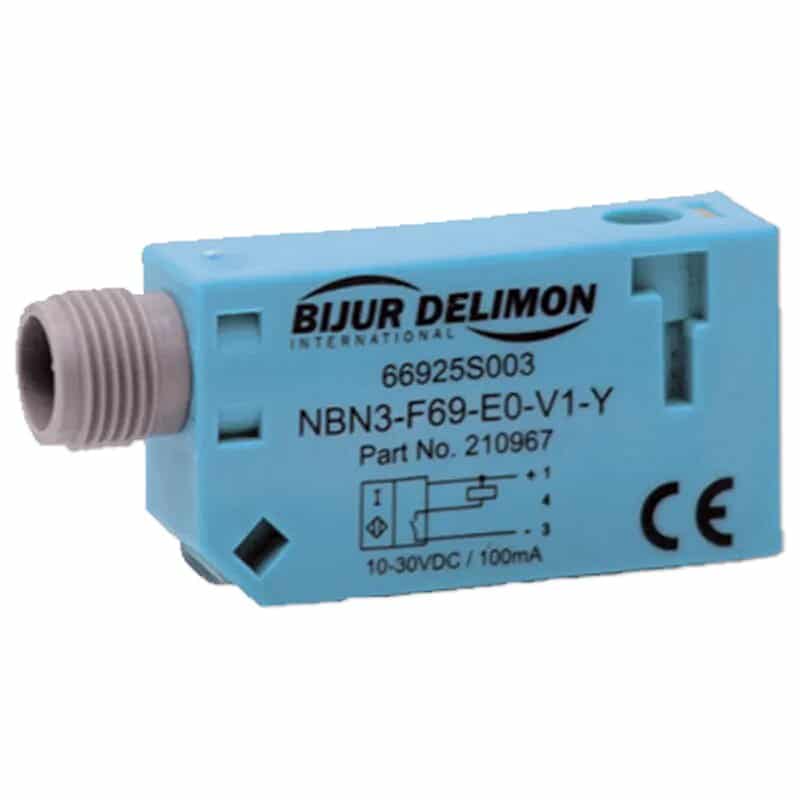

Valves are available with cycle indicator pins to confirm system operation visually. The cycle pin can also be fitted with a switch to provide electrical feedback to a system controller.

Features:
  • Progressive distributor block designed for use with oil or grease applications.
  • Manifolds are available in sizes ranging from 6 to 20 outlets.
  • Positive volume of 0.17cc (0.01 cu. in.) per outlet per cycle.
  • Easy-to-use control and monitoring features.

Disclaimer: Product images are for representation purposes only. The actual part/product could differ based on individual requirements. Please contact us for more information.

Technical Data
Material Steel
Minimum Pressure 145 psi(10 bar)
Maximum Pressure
Without indicator pin 4350 psi(300 bar)
With indicator pin 2300 psi (160 bar)
Temperature Range -5˚F to 176˚F (-20˚C to 80˚C)
Metered Volume Per Outlet  0.17cc (0.01 cu. in.) per cycle
Lubricant Grease Up to NLGI grade 2 Oil ISO VG 68 to 1,500 at working temp
