M2500G Divider Valves

M2500G Series Divider Valve Manifolds are the principal components of a progressive lubricating system. Their modular construction makes them easy to install, modify, and maintain without removing any tubing. The zinc-nickel-plated steel body ensures longer life in nasty environments.

Product Category - , ,

Product Description

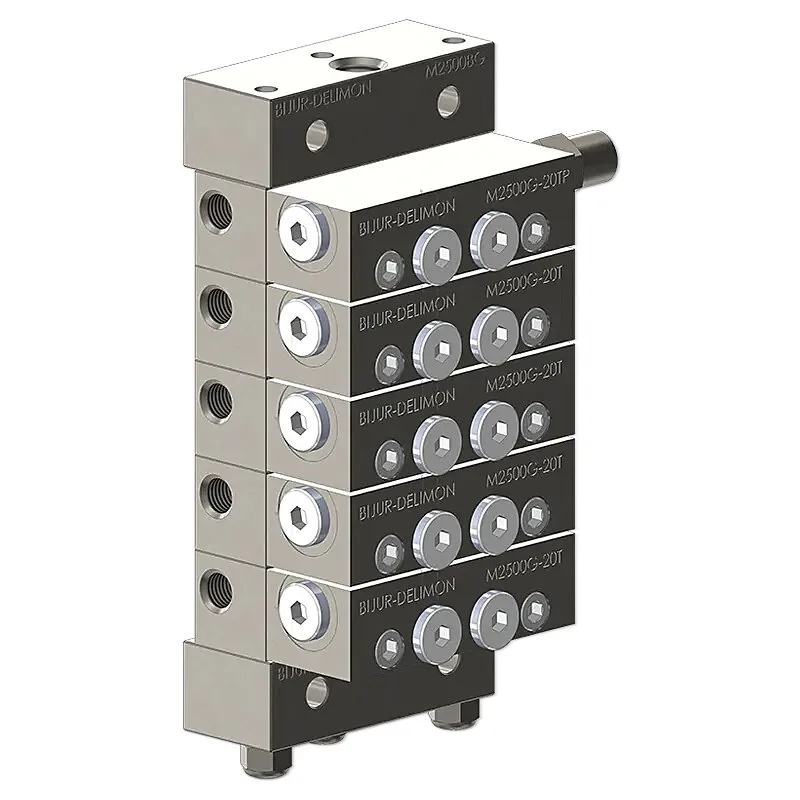

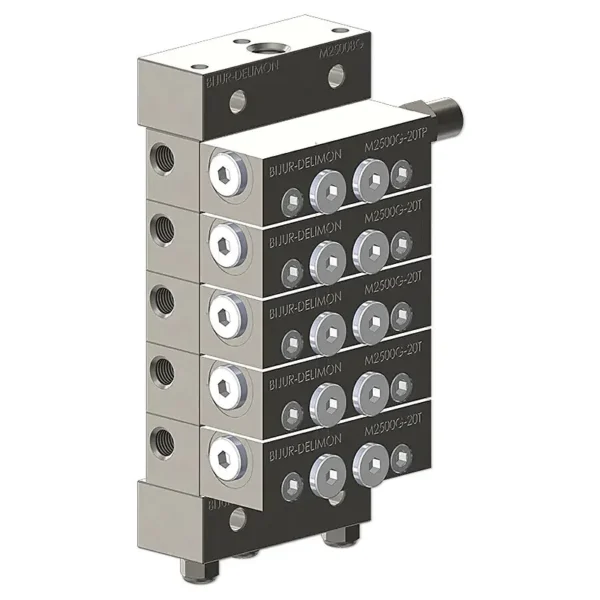

M2500G Divider Valves

M2500G Divider Valves are easy to install, modify, and maintain. Progressive movement lubricant divider blocks operate in a pre-arranged sequence for easy system operation monitoring through a moving indicator pin. Normally, the pin transmits a signal to the system controller through an electrical limit switch at the end of a complete lubrication cycle.

Up to 20 bearings can be lubricated from one manifold assembly, and up to 20 manifolds can be included in a simple system. Cyclic discharge from a lubricator forces sequential movement of the pistons inside the divider block, which displaces fixed volumetric amounts of lubricant to each point connected to the system network.

10 Features That Make The Difference
  • ?Viton? O-rings standard to protect against high heat & synthetic lubricants.
  • Form, fit and functionality are interchangeable with all major competitive brands.
  • Proximity cycle switch or standard mechanical cycle switch options are available.
  • ?SAE straight thread, NPSF or BSPP – all standard.
  • ?Integral or in-line solenoid valve for zone control.
  • ?Easy to assemble and replace valves without tubes.
  • Three to ten-section valve manifolds are available.

Disclaimer: Product images are for representation purposes only. Actual part/product could differ based on individual requirements. Please contact us for more information.

Additional Information

pa_manufacturer
Material Steel (zinc-nickel plated)
Maximum Operating Pressure 400 bar (5,800 psi)
Discharge per cycle .005 cu. in (.08 cc) to .080 cu. in. (1.31 cc)
Seals Viton O-rings (70 durometers)
Maximum Temperature 350°F (163°C)
Lubricant SAE 10 oil to NLGI #2 grease
Approximate Weight Of Complete Divider Valve Assembly:
Valve Assembly  Weight
3 Section Divider 6.2 lb
4 Section Divider 7.6 lb
5 Section Divider 9.1 lb
6 Section Divider 10.5 lb
7 Section Divider 11.9 lb
8 Section Divider 13.4 lb
9 Section Divider 14.8 lb
10 Section Divider 16.2 lb
