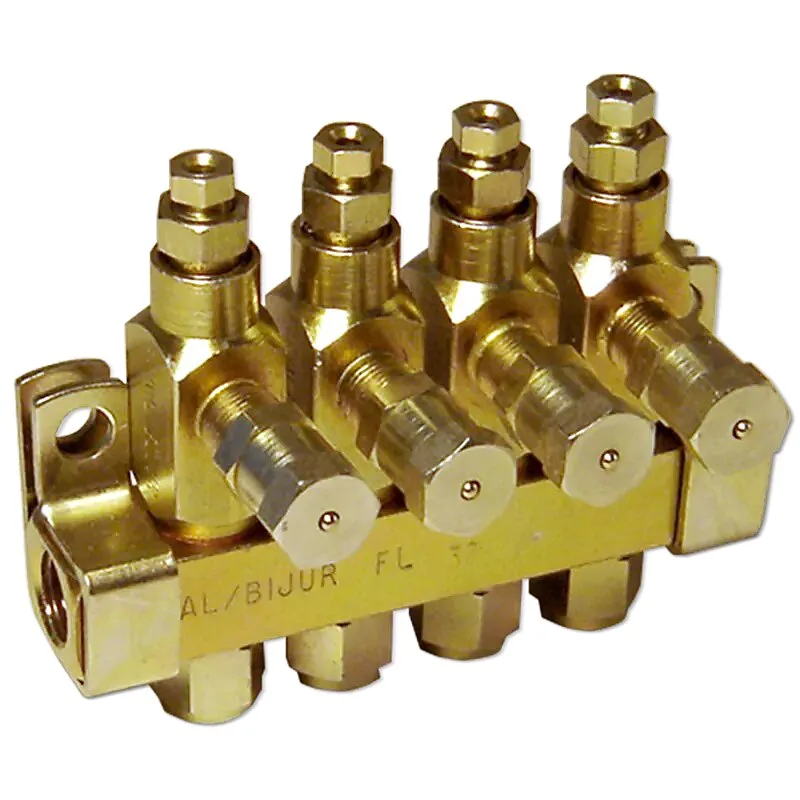

FL-33 Injectors

Single and manifold grease injectors are adjustable up to 0.049cc (0.003 cubic inches) discharge per cycle. Each manifold includes two mounting clips and screws (1/4” – 20 thread x 1/2” long hex head).

Product Description

FL-33 Injectors

Notes Regarding Use:

  • Check discharge output from the injector if the cap is adjusted to less than 1/2 turn from the minimum.
  • Use clean grease of proper grade as recommended by the machine manufacturer. Check compatibility with synthetic lubricants.
  • Grease must be successfully primed through small bore tubing under pressure without separating.

Disclaimer: Product images are for representation purposes only. The actual part/product could differ based on individual requirements. Please contact us for more information.

Minimum Operating Pressure 1200 psi (82 bar)
Maximum Operating Pressure 3500 psi (238 bar)
Maximum Vent (Recharge Pressure) 200 psi (14 bar)
Grease To NGLI grade 2
Minimum Grease Discharge 0.016cc (0.001 cu. in.)
Maximum Grease Discharge 0.049cc (0.003 cu. in.)
Adjusting Cap Range 2 turns from minimum
Material Carbon steel,300 series stainless steel
Surface Protection Zinc
Seals Viton
Maximum Operating Temperature 350°F (176°C)
Manifold Injector 1/8” NPTF (F)
Inlet Injector Outlet 1/8” O.D. tube connection
