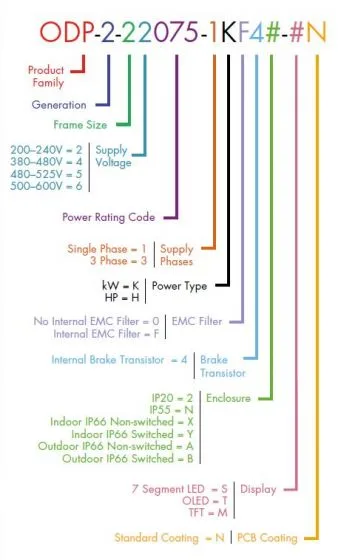

ODP-2-26010-3H042-MN

Brand:?Invertek
Frame:?2
Input Voltage: 500 / 600V
Voltage: 500 / 600V
Rated Power: 0.75 kW/1 HP
Phase: 3

Product Category

$1,354.56

Product Description

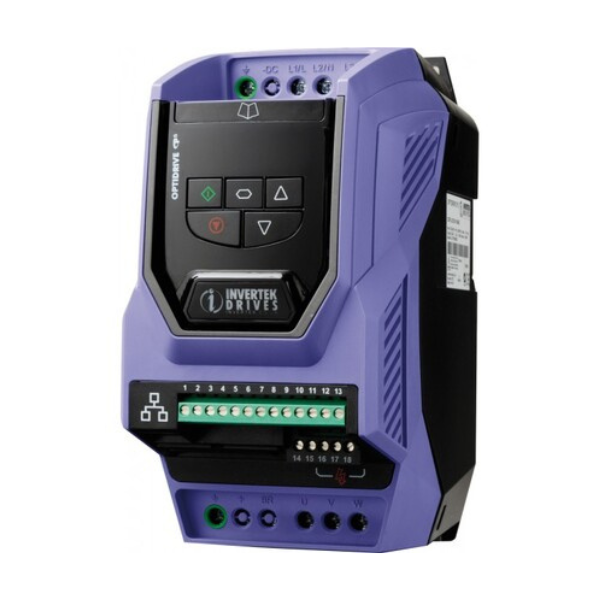

Invertek OptiDrive P2 Performance VFD

Invertek ODP-2-26010-3H042-MN provides cutting-edge technology with a superior combination of powerful performance and accurate motor control for a complete spectrum of industries. It’s Rugged and reliable, Cost effective with all required parameters, and the installation and commissioning is fast and easy

Ideal for the following applications:

Food and Beverages: Conveyors, Pumps, Mixers
Cement, Aggregate, Tile, Quarrying & Mining: Feed Conveyors, Crushers, Cranes
Metal and Processing: Grinding, Cutting, Polishing, Drilling, Rolling

Disclaimer: Product images are for representation purposes only. Actual part/product could differ based on individual requirements. Please contact us for more information.

Additional Information

Weight 4.19 kg
Dimensions 9.06 × 5.71 × 10.43 cm
Display

TFT

size

2, Frame 2

Input Voltage

500-600V 3 Phase

Horsepower

1

Technical Specifications
Frame 2
Height 8.7 in
Width  4.3 in
Depth 7.3 in
Input Voltage 500 / 600V
Voltage 500 / 600V
Rated Power  2.2 kW/3 HP
Phase 3
Input Ratings
Supply Voltage 500-600 V
Input Phases 3
Supply Current Continuous 2.5 A
Supply Fuse or MCB (Type B) 10 Amp
Output Ratings
Motor Output Rating 0.75 kW (1 HP)
Output Voltage 0 – Supply Voltage
Output Current 2.1 A
Cable Information
Max Supply Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Length 100 m (328 ft)
Factory Build Options
EMC Filter No Internal EMC
Brake Transistor Internal
Enclosure IP20
Display TFT Display
PCB Coating Standard
Dimensions
Size 2
Height 8.7 in
Width 4.33 in
Depth 7.28 in
Weight 3.97 lbs
Fixings  4 x M4
Packaged Dimensions
Height 10.43 in
Width 5.71 in
Depth 9.06 in
Weight 4.19 lbs
