Product Description

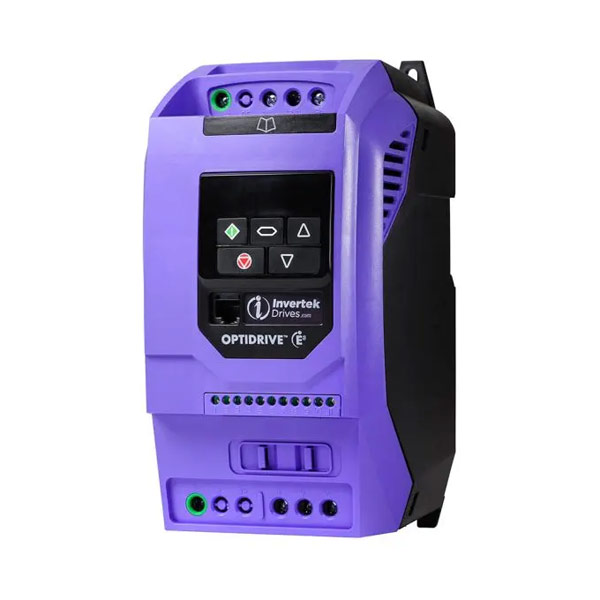

Invertek OptiDrive E3 Sensorless Vector Control for all types of Motor
Invertek Optidrive provides cutting-edge technology with a superior combination of powerful performance and accurate motor control for a complete spectrum of industries. It’s Rugged and reliable, Cost-effective with all required parameters, and the installation and commissioning is fast and easy.
Ideal for the following applications:
Industrial Model: Conveyors, Treadmills, Mixers
Fan Mode:Â Swimming Pools, Transfer Pumps, Borehole Pumps, Fountains
Fan Mode: Air Handling Units, Ventilation and Circulating Fans, Air Curtains, Kitchen Extracts
Input Ratings:
Supply Voltage: 200-240 V
Input Phases: 1
Supply Current Continuous: 14 A
Supply Fuse or MCB (Type B): 20 A
Output Ratings:
Motor Output Rating: 1.1 kW (1.5 HP)
Output Voltage: 0 – Supply Voltage
Output Current: 10.5 A
Cable Information:
Max Supply Cable Size: 8 mm² (0.01 sq in)
Max Motor Cable Size: 8 mm² (0.01 sq in)
Max Motor Cable Length: 100 m (328 ft)
Factory Build Options:
EMC Filter: Internal EMC Filter
Brake Transistor: Internal Braking Transistor
Enclosure: IP20
Dimensions:
Size: 2
Height: 221 mm (8.7 in)
Width: 110 mm (4.33 in)
Depth: 150 mm (5.91 in)
Weight: 1.7 kg (3.75 lbs)
Fixings: 4 x M5
Packaged Dimensions:
Height: 234 mm (9.21 in)
Width: 144 mm (5.67 in)
Depth: 260 mm (10.24 in)
Weight: 1.93 kg (4.25 lbs)
Specifications:
Frame: 2
Height: 8.7 in
Width: 4.3 in
Depth: 5.9 in
Input Voltage: 200 / 240V
Voltage: 200 / 240V
Rated Power: 1.1 kW/1.5 HP
Phase: 1
Disclaimer: Product images are for representation purposes only. Actual part/product could differ based on individual requirements. Please contact us for more information.
