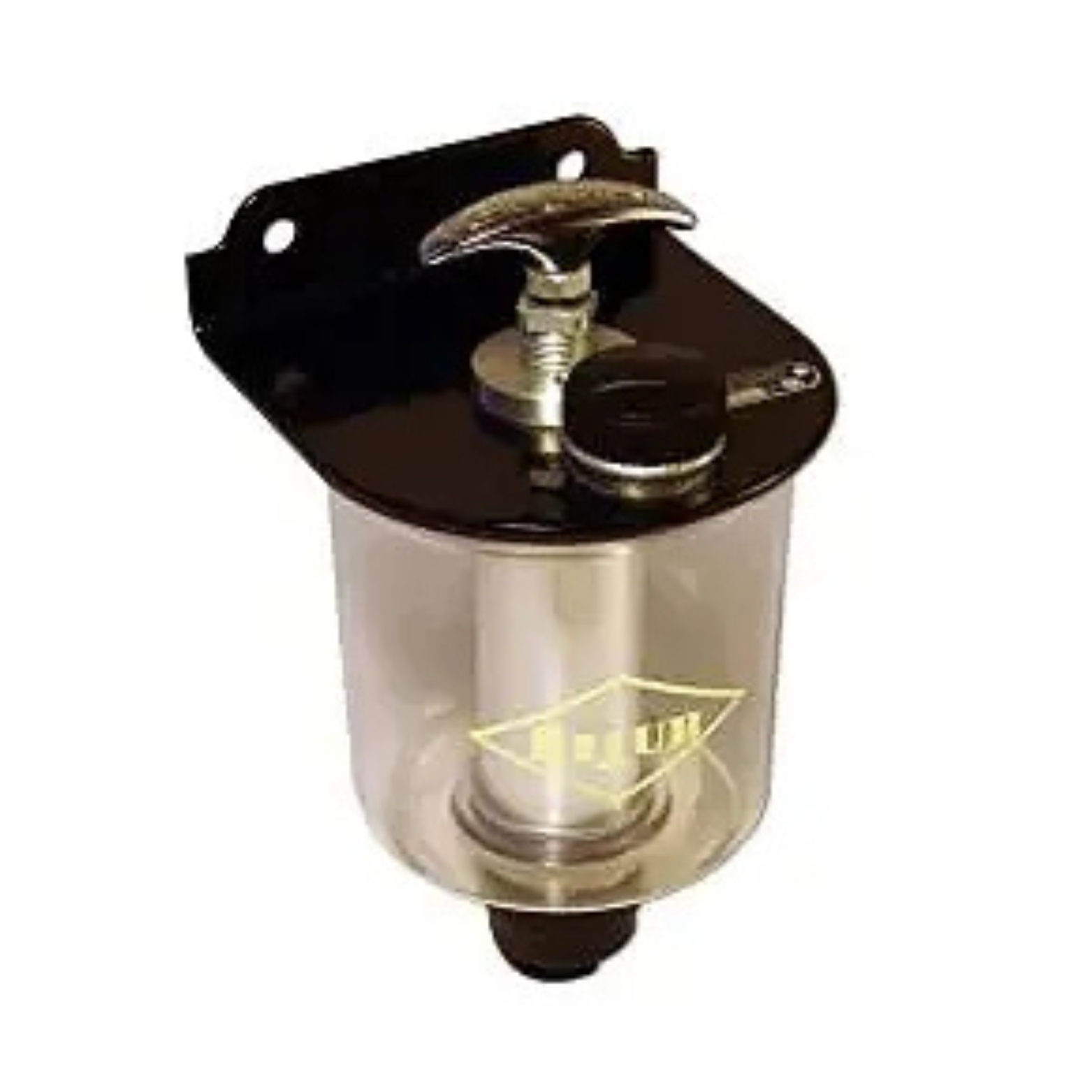

HIP-P Lubricator

HIP-P LUBRICATOR is a manual one-shot lubricator that includes a spring return piston pump in a plastic reservoir. The lubricator is operated by pulling a lever which raises a piston and compresses a spring, discharging oil into the system. Discharge volume and pressure are independent of oil viscosity.

$333.34

Description
Specification

Product Description

HIP-P LUBRICATOR-Bijur Delimon

Operation: The Lubricator includes a spring return piston pump in a plastic reservoir. Slowly pulling up on the tee handle to the stop fills the cylinder with a predetermined volume of oil. Upon release, spring pressure discharges the oil into the system and returns the handle to its original position. The lubricator must be operated at intervals recommended by the machine manufacturer.

Disclaimer: Product images are for representation purposes only. Actual part/product could differ based on individual requirements. Please contact us for more information.

Technical Data

Reservoir Capacity	475cc (1 pint)
Lubricator Inlet Filter	40 micron particle separation
Discharge Pressure	30 psi average
Discharge Setting	15cc
Piston Diameter	1/18”
Piston Stroke Setting	1/2 to 1-1/8”
Discharge Volume Per Stroke	5 to 15cc
Viscosity range	100 to 10,000 SSU at operating temperature
Outlet	1/8”NPTF
