Product Description

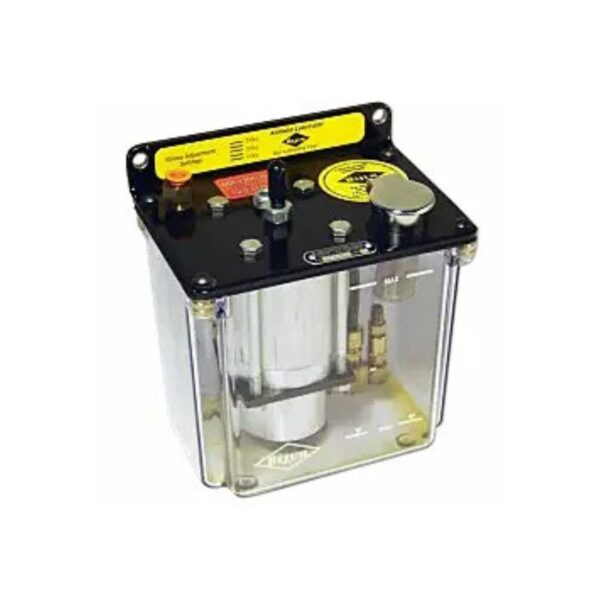

Bijur Delimon Airmatic Lubricator – Pneumatic Operations,Oil
Application: The Airmatic lubricator is for use with cyclic oil lubrication systems. The unit can be used with single line resistance (SLR), positive displacement injector (PDI), progressive distribution and injector systems.*
Operation: Airmatic® lubricator includes an air-actuated, spring-return piston pump with an adjustable output between 2 to 10cc for each piston stroke at discharge pressures up to 500 psi. Oil output is related to piston travel and cycles per unit time. Stroke movement is preset to a fixed discharge, and supply air pressure governs the output delivery pressure. A built-in pressure relief device lets the PDI reset after discharge when used with positive displacement injectors.
For extended service, incoming air must be dry. Always use a suitable FRL unit (filter/regulator/ lubricator) to control air to the recommended operating range. Normally, the air-operated Airmatic uses a 3/2-way electrical solenoid valve (optional) to control and vent shop air from the pump air inlet. All models are available with optional 3/2-way valves.
To adjust lubricant delivery, loosen the locknut on the hex socket, adjusting the screw (see Figure 1 on the right). Turn delivery, adjusting screw clockwise to reduce discharge – use the graduated label as a guide, set to the desired setting and tighten locknut (insert shows setting at 8cc). For PDI systems, a maximum discharge of 10cc/stroke is recommended.
