ZJBE Injectors

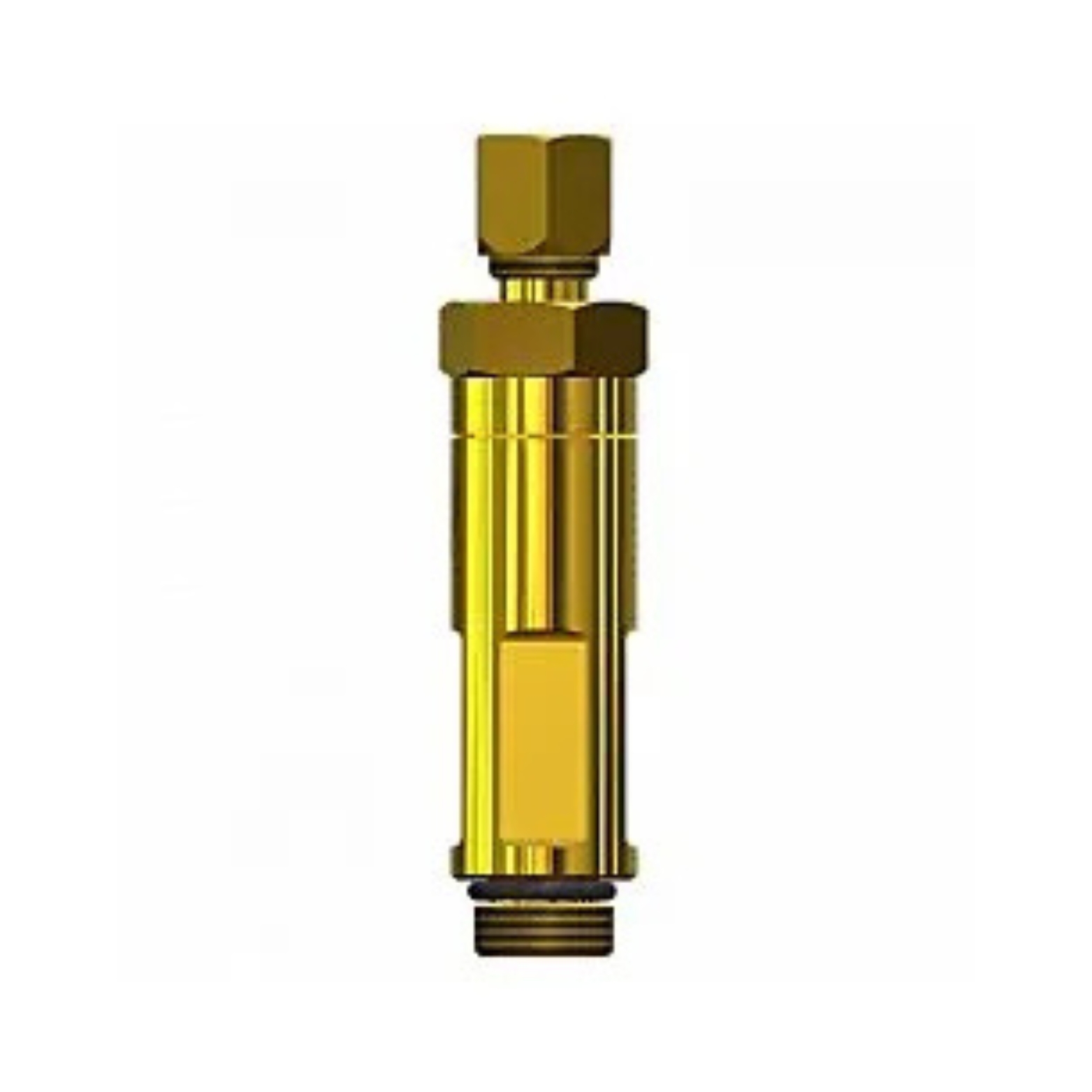

ZJBE injectors deliver a fixed pre-measured quantity of oil at the outlet connection during each discharge cycle. They are available at six discharge rates and in two body sizes. These units can be used with system distribution connections utilizing Bijur standard junctions, 4mm (5/32”) secondary tubing, and compression fittings.

Product Category - , , ,

Product Description

ZJBE INJECTORS-Bijur Delimon

Application:
ZJBE injectors can only be used in cyclic operation oil systems and feed in one direction. They are mounted in single or double outlet junctions with 5/16-24 threads (see Datasheet #35469: Junctions, Junction Bars and Junction Headers). The assembly is located close to application points and connected to bearings by tail tubes, normally 4mm (5/32”) diameter tubing.
System Requirements The lubricating pump in a PDI oil system must build up line pressure to 200 psi (14 bar) at minimum to actuate injector discharge. The recommended operating pressure is 300 psi (21 bar). A pressure relief device must be used in the system to permit pressure to drop quickly to approximately 5-10 psi (0.3-0.7 bar) between lubrication cycles, allowing injectors to reset, ready for the next lubrication cycle fully.


Disclaimer: Product images are for representation purposes only. Actual part/product could differ based on individual requirements. Please contact us for more information.
