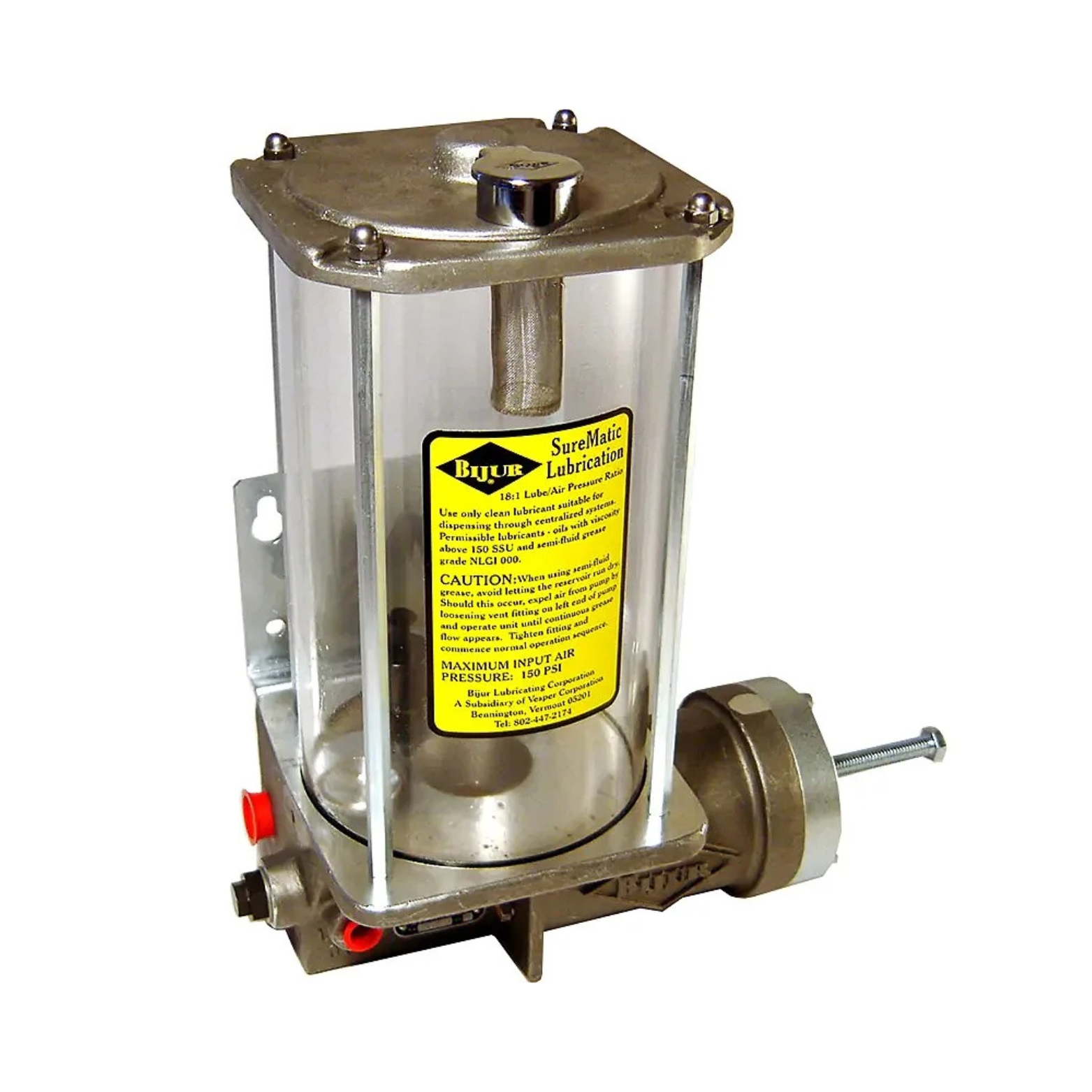

Surematic Pump

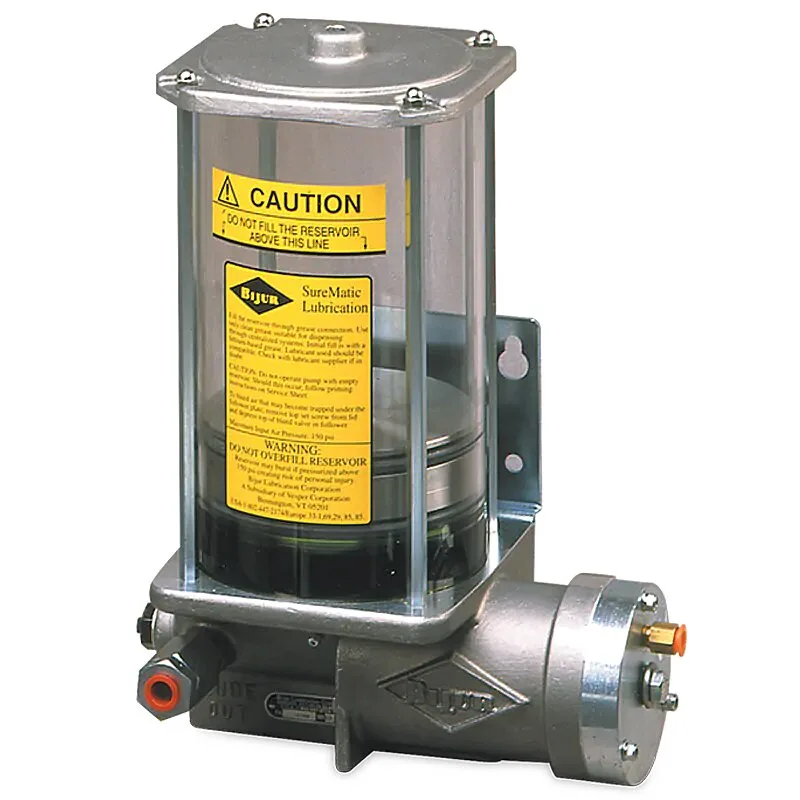

Surematic Lubricator PDI 2L 1 1 jpg

Surematic Pump

The SureMatic Lubricator comprises a piston discharge pump actuated by air, controlled by an electric solenoid valve (optional). Models are available to handle grease and oil lubricants.

Product Category - , , ,

Product Description

SUREMATIC PUMP- Bijur Delimon

The SureMatic Lubricator is a piston discharge pump actuated by air and controlled by an electric solenoid valve (optional). It handles most industrial greases suitable for being transferred under pressure through small bore tubing. A wide selection of reservoir capacities is available to handle any size of machinery. A machine or time-controlled solenoid valve actuates the SureMatic Lubricator to deliver pre-determined amounts of grease.

Recommended for use with Progressive Lubricating Systems, PDI and SLR systems.

Features
  • Three reservoir sizes are available.
  • Weighted follower plate (no spring necessary).
  • Low liquid level switch.
Application
  • Unit discharges lubricant on single action air-powered forward stroke and actuates all positive
    displacement injectors connected to the single line centralized distribution network.
  • A two directional outlet check valve vents pressure back to the reservoir on a spring-powered return stroke.
  • The lubricator can be used with the following injectors:
    FL-32, -33, -42, -43 Series Injectors (refer to Datasheet #27432).
    ZJB Series Injectors with Injector Reset Valve (IRV)
    (refer to Datasheets #24371, 26422, 24631 & 24274).
Grease Models
Lubricant Semi-Fluid Grease, NLGI grade 2
Electrical Level Control Switch (single pole momentary contact) Closes contact at low level
Maximum Voltage 125-250 VAC
Contact Rating 6 amp at 125 VAC; 3 amp at 250 VAC
Weight (empty) 21 lb
Oil Models
Lubricant Oil, 150-8000 SSU (32-1700 cSt)
Electrical Level Control Switch Closes contact at low level
Maximum Voltage 240 VAC
Contact Rating 0.17 amp at 125 VAC; 0.08 amp at 240 VAC
Weight (empty) 9.5 lb

Refer datasheet for operating the units.

Disclaimer: Product images are for representation purposes only. Actual part/product could differ based on individual requirements. Please contact us for more information.

Technical Data All Models
Lubricator Reservoir Capacity 1, 2, 3.5 and 5 liter
Discharge 8cc
Pressure Ratio/Lubricant Discharge/Inlet Air 18:01
Minimum Permissible Inlet Air Pressure 40 psi (3 bar)
Maximum Permissible Inlet Air Pressure 150 psi (10 bar)
Air Consumption per Stroke @ 75 psi (free air)  1 liter
Maximum Grease Pressure with 80 psi Air Pressure 1450 psi (100 bar)
Maximum Stroke Rate (full stroke, 8cc) Approximately 8 strokes/min.
Maximum Ambient Temperature Range 0°F to 180°F (-18°C to 82°C)
Materials  Aluminum pump; Buna N seals; acrylic reservoir
