ODP-2-52020-3HF4N-MN

Brand: Invertek
Frame: 2
Input Voltage: 200 / 240V
Voltage: 200 / 240V
Rated Power: 1.5 kW/2 HP
Phase: 3

$6,009.15

Product Description

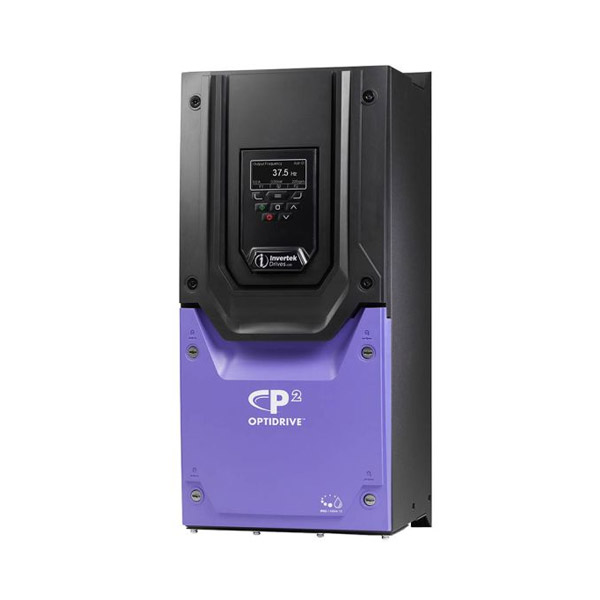

Invertek OptiDrive P2 Performance VFD

Invertek Optidrive provides cutting-edge technology with a superior combination of powerful performance and accurate motor control for a complete spectrum of industries. It’s Rugged and reliable, cost-effective with all required parameters, and fast and easy to install and commission.

Ideal for the following applications:
Food and Beverages: Conveyors, Pumps, Mixers
Cement, Aggregate, Tile, Quarrying & Mining: Feed Conveyors, Crushers, Cranes
Metal and Processing: Grinding, Cutting, Polishing, Drilling, Rolling

Disclaimer: Product images are for representation purposes only. Actual part/product could differ based on individual requirements. Please contact us for more information.

Additional Information

Weight 11.9 kg
Dimensions 14.57 × 12.4 × 15.75 cm
Display

OLED

size

2, Frame 2

Technical Specifications
Frame 2
Height 10.1 in
Width 7.4 in
Depth 9.4 in
Input Voltage 200 / 240V
Voltage 200 / 240V
Rated Power 1.5 kW/2 HP
Phase 3
Input Ratings
Supply Voltage 200-240 V
Input Phases 1
Supply Current Continuous 15.2  Amp
Supply Fuse or MCB (Type B) 25 Amp
Output Ratings
Motor Output Rating 1.5 kW (2 HP)
Output Voltage 0 – Supply Voltage
Output Current 7 Amp
Cable Information
Max Supply Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Length 100 m (328 ft)
Factory Build Options
EMC Filter Internal EMC
Brake Transistor Internal Brake Transistor
Enclosure IP66 Non-Switched Indoor
Display OLED Text
PCB Coating Standard
Dimensions
Size 2
Height 10.12 in
Width 7.4  in
Depth 9.41 in
Weight 10.58  lbs
Fixings 4 x M4
Packaged Dimensions
Height 15.75 in
Width 12.4 in
Depth 14.57  in
Weight 11.9 lbs
