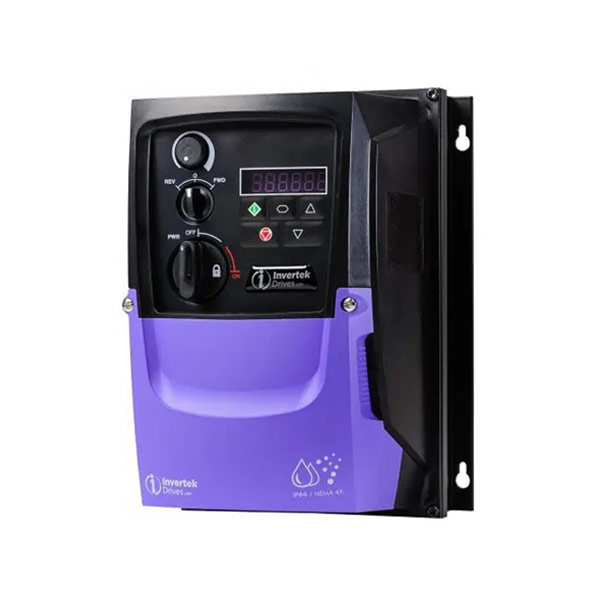

ODE-3-110070-1F1Y-01

Brand: Invertek
Frame: 1
Input Voltage: 110 / 115V
Voltage: 110/115V
Rated Power: 0.37 kW/0.5 HP
Phase: 1

Product Category

Product Description

Invertek OptiDrive E3 Sensorless Vector Control for all types of Motor

Invertek Optidrive provides cutting-edge technology with a superior combination of powerful performance and accurate motor control for a complete spectrum of industries. It’s Rugged and reliable, Cost-effective with all required parameters, and fast and easy to install and commission.

Ideal for the following applications:
Industrial Model: Conveyors, Treadmills, Mixers
Fan Mode: Swimming Pools, Transfer Pumps, Borehole Pumps, Fountains
Fan Mode: Air Handling Units, Ventilation and Circulating Fans, Air Curtains, Kitchen Extracts

Disclaimer: Product images are for representation purposes only. Actual part/product could differ based on individual requirements. Please contact us for more information.

Additional Information

Weight 7.56 kg
Dimensions 13.62 × 8.19 × 8.19 cm
Technical Specifications
Frame 1
Height 9.1  in
Width 6.3 in
Depth 7 in
Input Voltage 110 / 115V
Voltage 110 / 115V
Rated Power 0.37 kW/0.5 HP
Phase 1
Input Ratings
Supply Voltage 110-115 V
Input Phases 1
Supply Current Continuous 8.5 A
Supply Fuse or MCB (Type B) 16 A
Output Ratings
Motor Output Rating 0.37 kW (0.5 HP)
Output Voltage 0 – Supply Voltage
Output Current 7 Amp
Cable Information
Max Supply Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Size 8 mm² (0.01 sq in)
Max Motor Cable Length 100 m (328 ft)
Factory Build Options
EMC Filter No Internal EMC Filter
Brake Transistor No Internal Brake Transistor
Enclosure IP66 Indoor Switched
Dimensions
Size 1
Height 9.13 in
Width 6.34 in
Depth 7.05 in
Weight 6.83 lbs
Fixings  4 x M4
Packaged Dimensions
Height 8.19 in
Width 8.19 in
Depth 13.62 in
Weight 7.56 lbs
