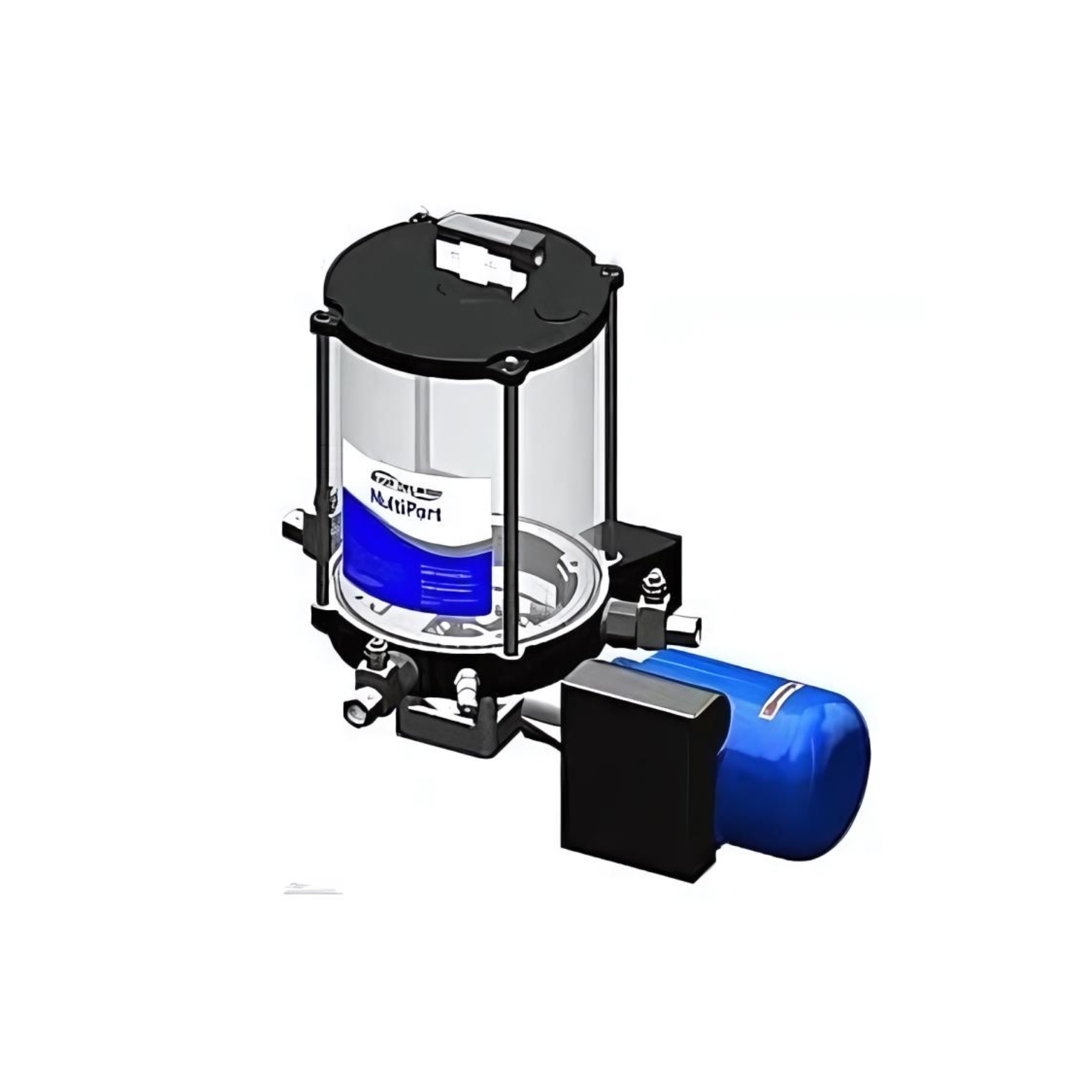

Multiport Lubricator

The MultiPort lubricator is a motor-driven, rugged, compact lubricator available in AC or DC voltage. Its fixed output pumping element can discharge grease over a wide operating range. An optional adjustable output element and low-level switch are also available.

Product Category - , ,

Product Description

MULTIPORT LUBRICATOR-Bijur Delimon

The MultiPort automatic lubricator is available in oil and grease versions. Electronic controllers can be used to program the lubricator to suit specific lubrication requirements. It is recommended for use with Series Progressive lubricating systems.

The MultiPort lubricator is designed to provide reliable and consistent lubrication to machinery in various industrial settings. Its compact size makes it ideal for use in machinery where space is limited. The fixed output pumping element ensures that the lubricator can deliver consistent lubrication to machinery over a wide operating range.

The optional adjustable output element and low-level switch add further versatility to the MultiPort lubricator, allowing it to be adjusted to meet the specific lubrication requirements of different machinery.

Operating Voltage

Motor

IP Enclosure Rating HP Rating Voltage Amperage
IP-55   0.068 12 VDC 14 FLA
24 VDC  12 FLA
0.08 110 V AC  1.83 FLA
220 VAC  0.68 FLA
220/380/440 VAC 0.63 FLA

Disclaimer: Product images are for representation purposes only. The actual part/product could differ based on individual requirements. Please contact us for more information.



Technical Data

Lubricator Reservoir Capacity 2, 4 and 8 liter (4, 8 and 16 lb)

Lubricant

 Grease NLGI grade 2 (Max) Oil Up to 5000 SUS
Maximum Working Pressure Grease 3600 psi (240 bar), Oil 2900 psi (180 bar)
Operating Temperature Range 0ËšF to 120ËšF (-18ËšC to 49ËšC)
Pumping Elements 1 to 3
Output per 1 rpm Fixed 0.16cc (0.01 cu. in.)
Output per 1 rpm Adjustable  0.16cc – 0.01cc (0.01- 0.0006 cu.in.)
Motor As noted below
Low-Level Switch
Grease N.C. (Available on some models)
Oil N.O. (Available on some models)
Discharge Element Output Port 1/4″ NPTF
1/4″ BSPP (230vac single phase only)
Fill Connection (Grease) Male filler fitting, quick disconnect plug
Fill Connection(Oil) Fill cap
